SR3B261BD PLC Controller Module,& Have in stock

$219.95

SR3B261BD Modular smart relay Zelio Logic - 26 I O - 24 V DC - clock - display, have in stock Characteristics Main range of product Zelio Logic product or component type Modular smart relay Complementary local display With number or control scheme lines 0...500...

Quantity :

Subtotal : $219.95

Brand : NewTouchBuff Official Store

Product Type :

Availability : Out of stock

SKU:

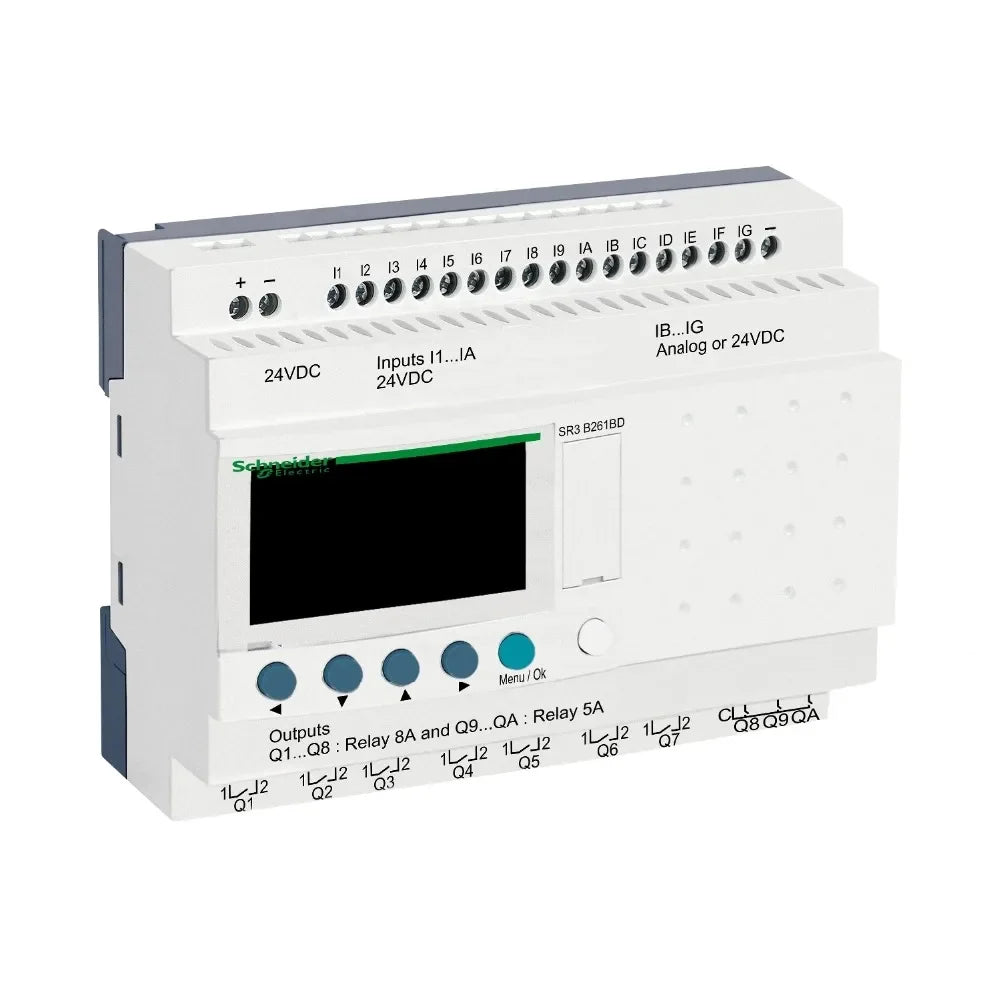

SR3B261BD Modular smart relay Zelio Logic - 26 I O - 24 V DC - clock - display, have in stock

SR3B261BD

Characteristics

Main

range of product	Zelio Logic
product or component type	Modular smart relay

Complementary

local display	With
number or control scheme lines	0...500 with FBD programming 0...240 with ladder programming
cycle time	6...90 ms
backup time	10 yearsat 77 °F (25 °C)
clock drift	6 s/monthat 77 °F (25 °C) 12 min/yearat 32...131 °F (0...55 °C)
checks	Program memory on each power up
[Us] rated supply voltage	24 V
supply voltage limits	19.2...30 V
supply current	190 mA (without extension) 300 mA (with extensions)
power dissipation in W	10 W with extensions 6 W without extension
reverse polarity protection	With
discrete input number	16 conforming to EN/IEC 61131-2 type 1
discrete input type	Resistive
discrete input voltage	24 V DC
discrete input current	4 mA
counting frequency	1 kHzfor discrete input
voltage state 1 guaranteed	>= 15 Vfor I1...IA and IH...IR discrete input circuit >= 15 Vfor IB...IG used as discrete input circuit
voltage state 0 guaranteed	<= 5 Vfor I1...IA and IH...IR discrete input circuit <= 5 Vfor IB...IG used as discrete input circuit
current state 1 guaranteed	>= 1.2 mA for IB...IG used as discrete input circuit >= 2.2 mA for I1...IA and IH...IR discrete input circuit
current state 0 guaranteed	<= 0.5 mA for IB...IG used as discrete input circuit <= 0.75 mA for I1...IA and IH...IR discrete input circuit
input compatibility	3-wire proximity sensors PNP (discrete input)
analogue input number	6
analogue input type	Common mode
analogue input range	0...10 V 0...24 V
maximum permissible voltage	30 V (analogue input circuit)
analogue input resolution	8 bits
LSB value	39 mV (analogue input circuit)
conversion time	Smart relay cycle time analogue input circuit
conversion error	+/- 5 %at 77 °F (25 °C)for analogue input circuit +/- 6.2 %at 131 °F (55 °C)for analogue input circuit
repeat accuracy	+/- 2 %at 131 °F (55 °C)for analogue input circuit
operating distance	10 m between stations, with screened cable (sensor not isolated) analogue input circuit
input impedance	12 kOhm (IB...IG used as analogue input circuit) 12 kOhm (IB...IG used as discrete input circuit) 7.4 kOhm (I1...IA and IH...IR discrete input circuit)
number of outputs	10 relay output(s)
output voltage limits	24...250 V AC (relay output) 5...30 V DC (relay output)
contacts type and composition	NO relay output
output thermal current	5 A for 2 outputs (relay output) 8 A for 8 outputs (relay output)
electrical durability	500000 cycles AC-12at 230 V, 1.5 Afor relay output conforming to EN/IEC 60947-5-1 500000 cycles AC-15at 230 V, 0.9 Afor relay output conforming to EN/IEC 60947-5-1 500000 cycles DC-12at 24 V, 1.5 Afor relay output conforming to EN/IEC 60947-5-1 500000 cycles DC-13at 24 V, 0.6 Afor relay output conforming to EN/IEC 60947-5-1
switching capacity in mA	>= 10 mAat 12 V (relay output)
operating rate in Hz	0.1 Hz (at Ie)for relay output 10 Hz (no load)for relay output
mechanical durability	10000000 cycles (relay output)
[Uimp] rated impulse withstand voltage	4 kV conforming to EN/IEC 60947-1 and EN/IEC 60664-1
clock	With
response time	10 ms (from state 0 to state 1) relay output 5 ms (from state 1 to state 0) relay output
connections - terminals	Screw terminals, clamping capacity: 1 x 0.2...1 x 2.5 mm² AWG 25...AWG 14 semi-solid Screw terminals, clamping capacity: 1 x 0.2...1 x 2.5 mm² AWG 25...AWG 14 solid Screw terminals, clamping capacity: 1 x 0.25...1 x 2.5 mm² AWG 24...AWG 14 flexible with cable end Screw terminals, clamping capacity: 2 x 0.2...2 x 1.5 mm² AWG 24...AWG 16 solid Screw terminals, clamping capacity: 2 x 0.25...2 x 0.75 mm² AWG 24...AWG 18 flexible with cable end
tightening torque	4.42 lbf.in (0.5 N.m)
overvoltage category	III conforming to EN/IEC 60664-1
product weight	0.88 lb(US) (0.4 kg)

Remarks:

There are too many model numbers,and failed to upload the picture for every model, the Uploaded images for reference only。

If you need a picture for your specific model , please contact us for a picture

Dimensions Drawings

Compact and Modular Smart Relays

Mounting on 35 mm/1.38 in. DIN Rail

(1)

With SR2USB01 or SR2BTC01

Screw Fixing (Retractable Lugs)

(1)

With SR2USB01 or SR2BTC01

Position of Display
