Industrial Monitor Converter GBS-8219 Support CGA/EGA/RGB To VGA For CNC Display

$328.22

~~$485.77~~

Features: Feature specifications The GBS-8219 is a professional industrial-grade video converter designed to bridge legacy industrial display systems with modern VGA monitors. It reliably converts CGA, EGA, RGB, RGBS, RGBHV, and YPbPr signals from CNC machines, PLCs, and old industrial control equipment into standard VGA output. This plug-and-play solution eliminates...

Quantity :

Subtotal : $328.22

Brand : NewTouchBuff Official Store

Product Type : Industrial Monitor Converter

Availability : Out of stock

SKU: CGA/EGA/RGB to VGA Industrial Converter

Features:

Feature specifications

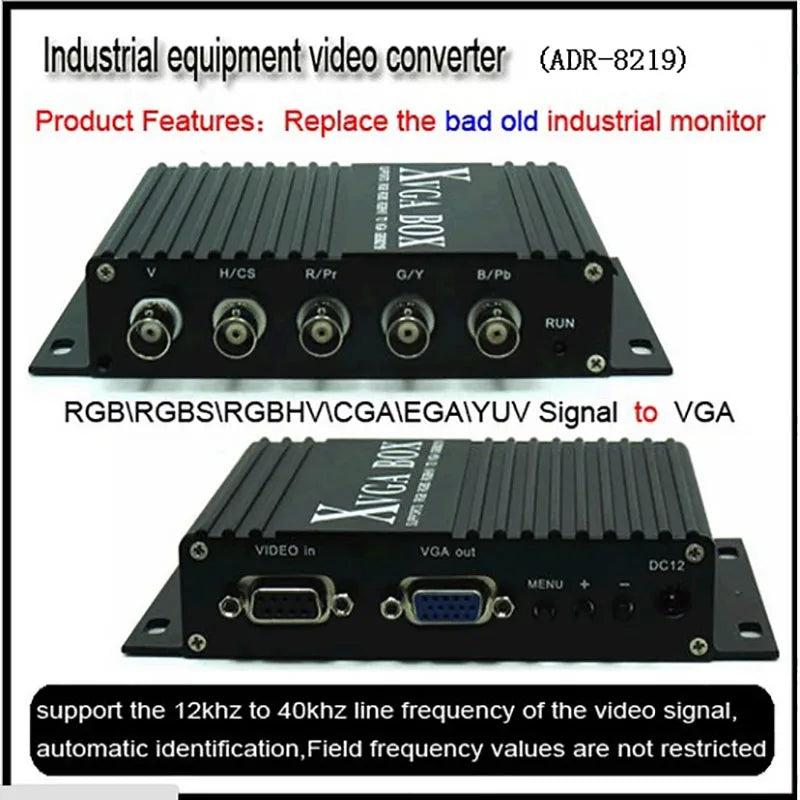

The GBS-8219 is a professional industrial-grade video converter designed to bridge legacy industrial display systems with modern VGA monitors. It reliably converts CGA, EGA, RGB, RGBS, RGBHV, and YPbPr signals from CNC machines, PLCs, and old industrial control equipment into standard VGA output. This plug-and-play solution eliminates the need for expensive legacy display replacements, making it ideal for CNC retrofits, factory automation upgrades, and machine tool maintenance.

Core Features

✅ Multi-Signal Compatibility: Supports CGA, EGA, MDA, RGB, RGBS, RGBHV, RGB SOG, YPbPr inputs

✅ Auto Recognition: Automatically detects input signal type, horizontal (12–40kHz) and vertical resolution (200–600 lines)

✅ Industrial-Grade: Rugged metal enclosure for harsh factory environments, 24/7 operation ready

✅ Standard VGA Output: D-Sub 15-pin VGA port, supports 800×600@60Hz or custom resolutions

✅ Plug-and-Play: No software or calibration required; standalone operation

✅ Wide CNC Compatibility: Works with Fanuc, Siemens, Mitsubishi, Haas, and other CNC systems

✅ Cost-Effective Upgrade: Replace obsolete CRT displays with modern LCD/LED monitors

Parameter	Details
Model	GBS-8219 (XVGA Box)
Input Signals	CGA, EGA, MDA, RGB, RGBS, RGBHV, RGB SOG, YPbPr
Input Interfaces	9-pin, 3-pin, 6-pin, 14-pin, 20-pin, 25-pin (BNC compatible)
Horizontal Frequency	12kHz–40kHz (auto-detect)
Vertical Resolution	200–600 lines (auto-detect)
Output	D-Sub 15-pin VGA, 800×600@60Hz (custom resolution supported)
Power Supply	DC 12V 1.0A (adapter included)
Dimensions	148×101×28 mm
Weight	310g
Warranty	1-year manufacturer warranty
Applications	CNC machines, PLCs, industrial control systems, legacy display retrofits

Input	Signals	MDA、CGA、EGA、RGB、RGB Sog、RGBS、RGBHV、YPbPr
	Interface	9pin、3pin、6pin、14pin、20pin、25pin
	Horizontal Frequency Rate(H)	12kHz to 40kHz automatically recognized
Output	Supports	15pin VGA，Resolution:800*600/60HZ or custom-resolution
Output	Interface	D-Sub 15 PIN standard VGA port
Power	DC 12V 1.0A
