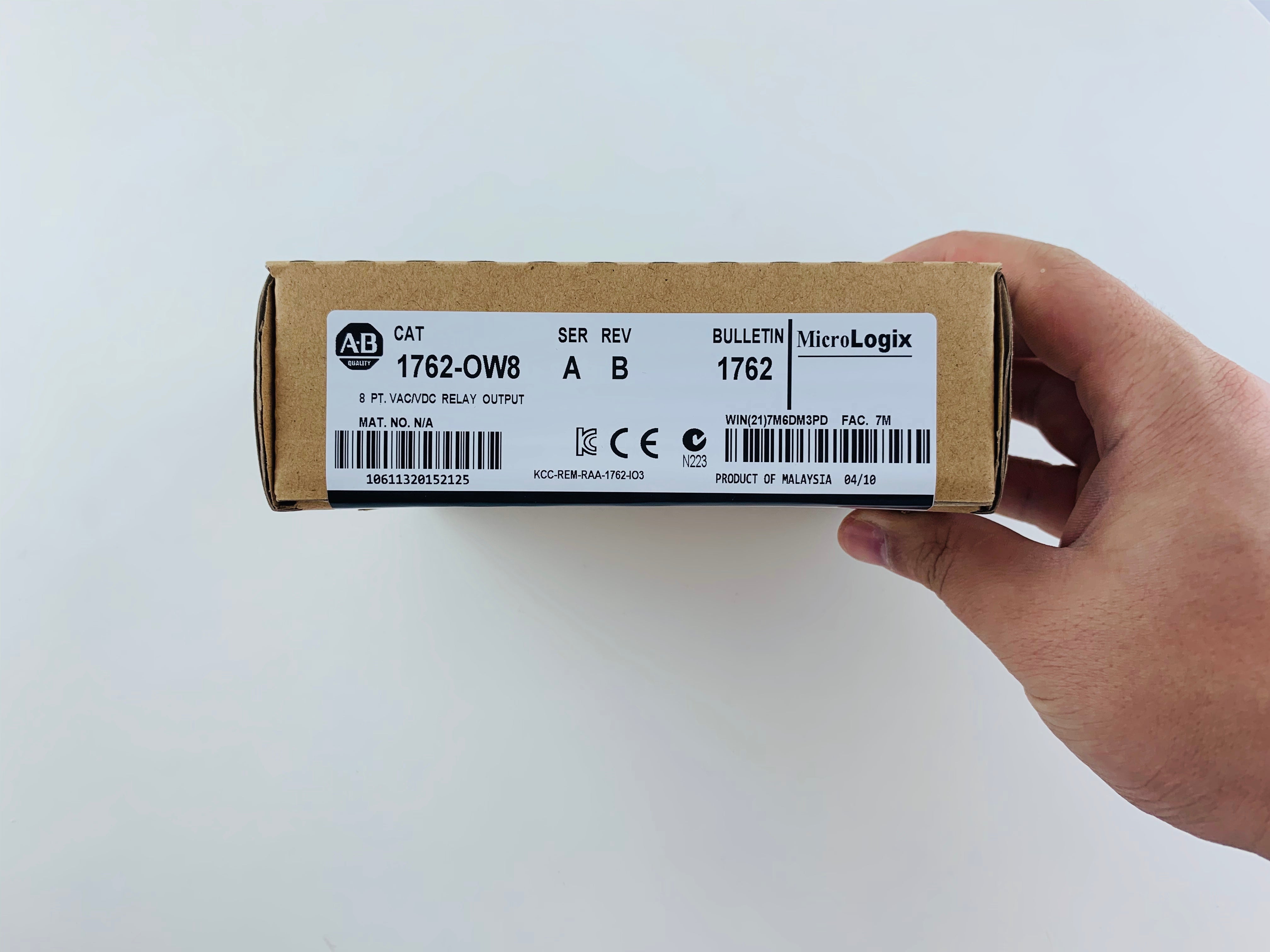

Allen‑Bradley 1762‑OW8 MicroLogix 8‑Point Relay Output Module, 5‑265V

Allen‑Bradley 1762‑OW8 MicroLogix 8‑Point Relay Output Module, 5‑265V AC/5‑125V DC, New Original, Factory Sealed, In Stock

$89.95

✅ Model: 1762‑OW8 (MicroLogix 1762 Series) ✅ Outputs: 8× Form A (normally open) relay channels ✅ Voltage Range: 5–265V AC / 5–125V DC ✅ Per‑Point Current: 2.5A max (resistive load) ✅ Isolation: 1500V AC channel‑to‑channel & channel‑to‑backplane ✅ Groups: 2 isolated groups (0–3, 4–7) ✅ Compatibility: MicroLogix 1100 / 1200...

Quantity :

Subtotal : $89.95

Brand : NewTouchBuff Official Store

Product Type :

Availability : Out of stock

SKU:

✅ Model: 1762‑OW8 (MicroLogix 1762 Series)

✅ Outputs: 8× Form A (normally open) relay channels

✅ Voltage Range: 5–265V AC / 5–125V DC

✅ Per‑Point Current: 2.5A max (resistive load)

✅ Isolation: 1500V AC channel‑to‑channel & channel‑to‑backplane

✅ Groups: 2 isolated groups (0–3, 4–7)

✅ Compatibility: MicroLogix 1100 / 1200 / 1400 controllers

✅ Mounting: DIN rail or panel mountRockwell Automation

✅ Condition: New, original factory sealed

✅ Warranty: 12 months manufacturer warranty

Parameter	Value
Part Number	1762‑OW8
Series	MicroLogix 1762 Expansion I/O
Number of Outputs	8 (Relay, Form A)
Voltage Rating	5–265V AC, 5–125V DC
Continuous Current/Point	2.5A (max)
Continuous Current/Module	16A (max)
On/Off Delay	10ms (max, resistive)
Backplane Current	80mA @5V DC; 90mA @24V DC
Heat Dissipation	2.9W (max)
Dimensions (H×W×D)	90 × 40 × 87 mm
Weight	0.14 kg (0.30 lbs)
Operating Temp	0°C ~ +55°C
Certification	CE, RoHS, UL
